Mini SATA(mSATA) to SATA Adapter

Mini SATA(mSATA) to SATA Adapter




Product Code: ADP-RUGG-003-00A
Please call for pricing

Description

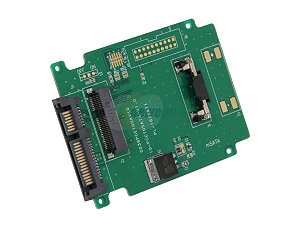

Mini SATA(mSATA) to SATA Adapter
The mSATA connector is 52 pin Mini PCIE style connector (Be aware that the min PCIE connector is wired diffrently to supports SATA signals and not PCIE)
Features
  • Supports mSATA storage modules (SATA protocols) (3.3V)
    Mini PCI-e 52 pin Connector
    Custom dimension Support :
    Form Factor : 69.5 mm(L) x 32.1 mm (W) x 3.8 mm (H)
    Form Factor : 69.5 mm(L) x 30 mm (W) x 3.8 mm (H)
    Full size dimension Support:
    Form Factor: 50.95 mm (L) x 30 mm (W) x 3.8 mm (H)
    Half size dimension Support:
    Form Factor: 26.8 mm (L) x 30 mm (W) x 3.8 mm (H)
